Flow-Pack Packaging Machine Model SFT 02.02.01

Horizontal Flow-Pack Packaging Machine SFT 02.02.01

Discover the SFT 02.02.01 horizontal flow-pack packaging machine, designed by Sifatech to ensure efficient, safe, and professional packaging operations.
An ideal solution for companies operating in the food, cosmetics, and industrial sectors.

The SFT 02.02.01 horizontal flow-pack packaging machine by Sifatech is a state-of-the-art automatic machine with top reel feeding and a rotary transverse sealing system, engineered to guarantee maximum efficiency and versatility in industrial environments.

Equipped with independent brushless motors and a full-color touch screen control panel, it allows complete control of the packaging parameters: speed, bag length, product synchronization, accessory management, and much more.

Thanks to its AISI 304 stainless steel frame and cantilevered design, it is easy to clean and ideal for the most demanding sectors: food, cosmetics, pharmaceuticals, and industrial.
It supports modified atmosphere packaging (MAP) and can be customized with modular accessories such as photocells, printers, labelers, and automatic loading systems.

Perfect for medium to high production volumes, it can produce flexible packaging with variable length according to the product format, always ensuring precise and secure sealing.


Main Applications

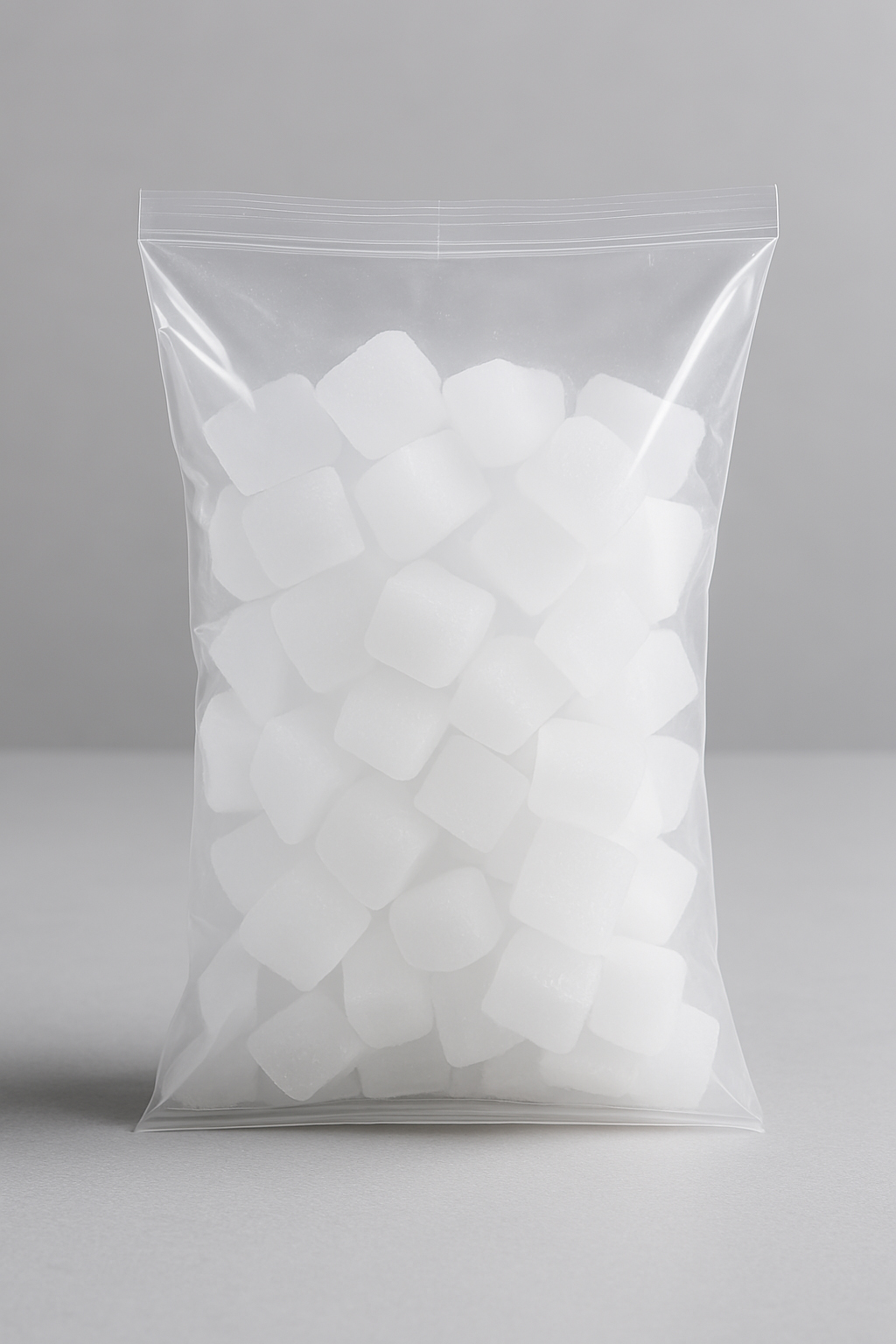

Dry Ice:
Safe and insulating packaging for the transportation and storage of dry ice, maintaining temperature and preventing sublimation.

Bakery Products:
Bread, biscuits, breadsticks, and other bakery items can be packaged while maintaining freshness and fragrance.

Chocolate and Pastry:
Perfect for packaging chocolates, pralines, desserts, and pastry products, ensuring an attractive presentation and effective protection.

Fruits and Vegetables:
The machine can package fresh fruits and vegetables, extending shelf-life and preserving product quality.

Meat and Cured Meats:
Suitable for packaging fresh meat, cold cuts, and similar products, ensuring optimal hygiene and preservation.

Cheese:
Capable of packaging various types of cheese, maintaining their organoleptic properties and extending product life.

Hygiene Products:
Efficient and safe packaging of soaps, detergents, and other personal hygiene products.

Pharmaceutical Products:
The machine is suitable for packaging medical devices and pharmaceutical products, complying with industry safety and hygiene standards.

Non-Food Products:
Beyond food products, the SFT 02.02.01 can also package non-food items, offering versatility and adaptability to different production needs.</p


Discover also our complete line of packaging machine accessories to optimize your production line.

👉 Contact us now or Request a free demo here.

Technical details

Motorization
Motorization with 3 independent Brushless motors for controlling the longitudinal sealing units, the infeed conveyor, and the rotary transverse sealing unit.
Touch Screen & Functions
Full-color touch screen with memory functions: machine speed, package length, temperature adjustment, cut-seal slowdown, pusher position for product synchronization, accessory enable/disable.
Components
PLC, Motors, and Drives by Schneider. Standard version with left-side loading and right-side unloading.
Structure
Painted steel frame RAL 9006 and AISI 304 stainless steel covers. Cantilevered structure with isolated and protected mechanical parts.
Infeed and Pushers
2100 mm slat conveyor (1400 mm usable load), stainless steel sides, quick-release food-grade plastic pushers.
Sealing Groups
Three pairs of wheels: film drive, sealing, and film folding. Rotary transverse sealing with 240 mm jaw and inclined knife.
Extras and Safety
500 mm self-centering reel holder, leather cord brake, end of film sensor, 1000 mm exit conveyor, photoelectric mark sensor, CE protections.
Technical Specifications
Voltage: 400V / 3ph / Ground + Neutral
Power: 3.5 kW
Mechanical speed: 80/min (1 track), 120/min (2 tracks)
Dimensions: 3670 x 1150 x 1850 mm (h)
Weight: 550 kg

Features

  • Model: SFT 02.02.01
  • Type: Horizontal flow-pack packaging machine with top reel feeding
  • Sealing: Rotary transverse sealing with 240 mm jaw
  • Motorization: 3 independent brushless motors
  • Control: Full-color touch screen with parameter memory
  • Materials: AISI 304 stainless steel, cantilevered structure
  • Production: Medium-high, variable-length packages
  • Applications: Food, cosmetics, pharmaceutical, industrial
  • Options: Photocells, printers, labelers, automatic loading systems
  • MAP Support: Designed for modified atmosphere packaging
Macchina confezionatrice Flowpack per imballaggi alimentari e industriali Sifatech

SFT 02.02.01

Horizontal flow-pack packaging machine SFT 02.02.01 with top reel feeding, rotary sealer, and brushless motors. Ideal for food packaging and industrial sectors.
